Ecovacs

Blade disc for ECOVACS GOAT G1 series robotic lawnmowers.
Models: GOAT G1, GOAT G1-800, GOAT G1-2000 and GX

Specification and special features

• Diameter of the blade disc: 187 mm
• Cutting width: 220 mm
• Sturdy and lightweight construction which, despite the additional blades, weighs less than the original with 3 blades and enables a longer battery life.
• Holder for 9 blades, thus longer blade life, better cutting results and more power in dense lawns.
• Symmetrical blades with 2 holes can be used up to 4 times.
• The blades are mounted on freely rotating bearings.
• They are attached to integrated brass threaded sleeves from Ruthex.
• No adapter required for mounting.
• Smooth surface, less susceptible to build-up of grass clippings, prevents imbalance.
• Made of high-quality technical plastic, with particularly good values for outdoor use in terms of UV resistance, water absorption, chemical resistance, cold and heat resistance, impact resistance and tensile strength.
• Compatible with original blades and M4 screws.

Further tuning blade disks in various other offers or on request.

Colors: anthracite and orange

Scope of delivery:

• Tuning blade disc for 9 blades for ECOVACS GOAT G1 robotic lawnmower

Please note that there may be slight differences between the product and the photos shown, especially in terms of color, shading and texture. However, these differences do not affect the function or quality of the product.

Important note: The tuning blade disk is fitted at your own risk in accordance with the manufacturer's instructions. All manufacturer information remains valid, in particular the safety instructions and the limited warranty

Models: GOAT A1600 RTK, A3000 LiDAR

Specification and special features

• Diameter: 140 mm
• Cutting width: 170 mm
• Weight: 91 grams without blades
• Cutting height identical to the original
• Compatible: original blades and M4 screws
• No adapter required for mounting
• Stable and lightweight construction
• Longer blade life, better cut
• 4-way reusable blades (2 holes)

• The blades are freely rotating.
• Attachment to integrated threaded sleeves

• smooth surface, hardly any deposits

• easy assembly, like original
• force-optimized design (FEM)
• made of high-quality technical plastic, with just the right values for outdoor use in terms of UV resistance, water absorption, chemical resistance, cold and heat resistance, impact strength and tensile strength.

• The blade plates are equipped with 9 integrated brass melting threaded sleeves (M4), which ensure a secure attachment of the blades and are designed for a long-lasting use.

More tuning blade discs in various other offers or on request.

Colors: anthracite

Please note that there may be slight variations between the product and the photos shown, particularly with regard to color, shade and texture. However, these differences do not affect the function or quality of the product.

Important note: The assembly of the blade disc is carried out according to the manufacturer's instructions at your own risk. All manufacturer's specifications are still valid, in particular the safety instructions and the limited warranty.

MAX blade disc for all ECOVACS GOAT series robotic lawn mowers.
Models: GOAT G1, GOAT G1-800, GOAT G1-2000 and  GOAT O500, GOAT O800 RTK, GOAT O1200 RTK and GX-600

Specifications and special features

• Diameter: 200 mm

• 14% larger area

• Cutting width: 234 mm
• Weight: 119 grams without blades
• Cutting heights identical to the original
• Compatible: original blade
• Compatible with M4 x 16 stainless steel screws
• Stable and lightweight construction
• Attachment for 9 blades
• Longer blade life, better cut
• 4-way reusable blades (2 holes)

• The blades are freely rotating
• Stainless steel T-sleeves for centering

• Optimal free-running and centering of the blades
• Attachment to integrated threaded sleeves
• Smooth surface, hardly any deposits
• Easy assembly with the included adapter
• Force-optimized design (FEM)

• Made of high-quality engineering plastic, with particularly good values for outdoor use in terms of UV resistance, water absorption, chemical resistance, cold and heat resistance, impact strength and tensile strength.

Further tuning blade discs in various other offers or on request.

Colors: anthracite and orange

Scope of delivery:

• Tuning blade disc for 9 blades with 9 stainless steel T spacers for ECOVACS GOAT robotic lawn mower without blades


Please note that there may be slight differences between the product and the photos shown, especially with regard to color, shade and texture. However, these differences do not affect the function or quality of the product.

Important note: The blade disc is installed at your own risk and according to the manufacturer's instructions. All manufacturer information is still valid, in particular the safety instructions and limited warranty.

Blade disc for ECOVACS GOAT G1 series robotic lawnmowers.
Models: GOAT G1, GOAT G1-800, GOAT G1-2000

Specification and special features

• Diameter: 187 mm
• Cutting width: 220 mm
• Weight: 94 grams without blades
• Cutting heights identical to the original
• Compatible: original blades and M4 screws
• Sturdy and lightweight construction
• Holder for 9 blades
• Longer blade life, better cut
• Blades can be used 4 times (2 holes)
• The blades are mounted on free-rotating bearings
• Stainless steel spacer T-sleeves for centering
• Optimum free running and centering of the blades
• Attachment to integrated threaded sleeves
• Smooth surface, hardly any deposits
• Simple installation with enclosed adapter
• Force-optimized design (FEM)
• Made of high-quality technical plastic, with particularly good values for outdoor use in terms of UV resistance, water absorption, chemical resistance, cold and heat resistance, impact strength and tensile strength.

• Tuning blade disc for 9 blades for ECOVACS GOAT G1 robotic lawnmower

Blade disk adapter
Models: GOAT G1, GOAT G1-800, GOAT G1-2000 and GOAT O500, GOAT O800 RTK, GOAT O1200 RTK and GOAT A1600 RTK, GOAT A2000 RTK, GOAT A2500 RTK, GOAT A3000 RTK and GX-600

Compatibility:
This adapter is specially designed for use with our blade discs and ensures a precise reduction of the cutting height by 5 millimetres.

Installation instructions:

• Only use our blade discs and the screws offered or screws of exactly the right length (M4 x 16 mm length).
• An incorrect screw length can impair the stability of the adapter and jeopardize safety.

Important notes:

• Not compatible with other blade plates or adapters.
• Ensure that assembly is carried out in accordance with the instructions and that all screws are tightened securely.

This blade & screw set is suitable for all our moving discs.

• They can be used up to 4 times in a completely new condition thanks to their 2 holes.
• The blade set is made of carbon steel and is coated with titanium, which ensures a high level of robustness

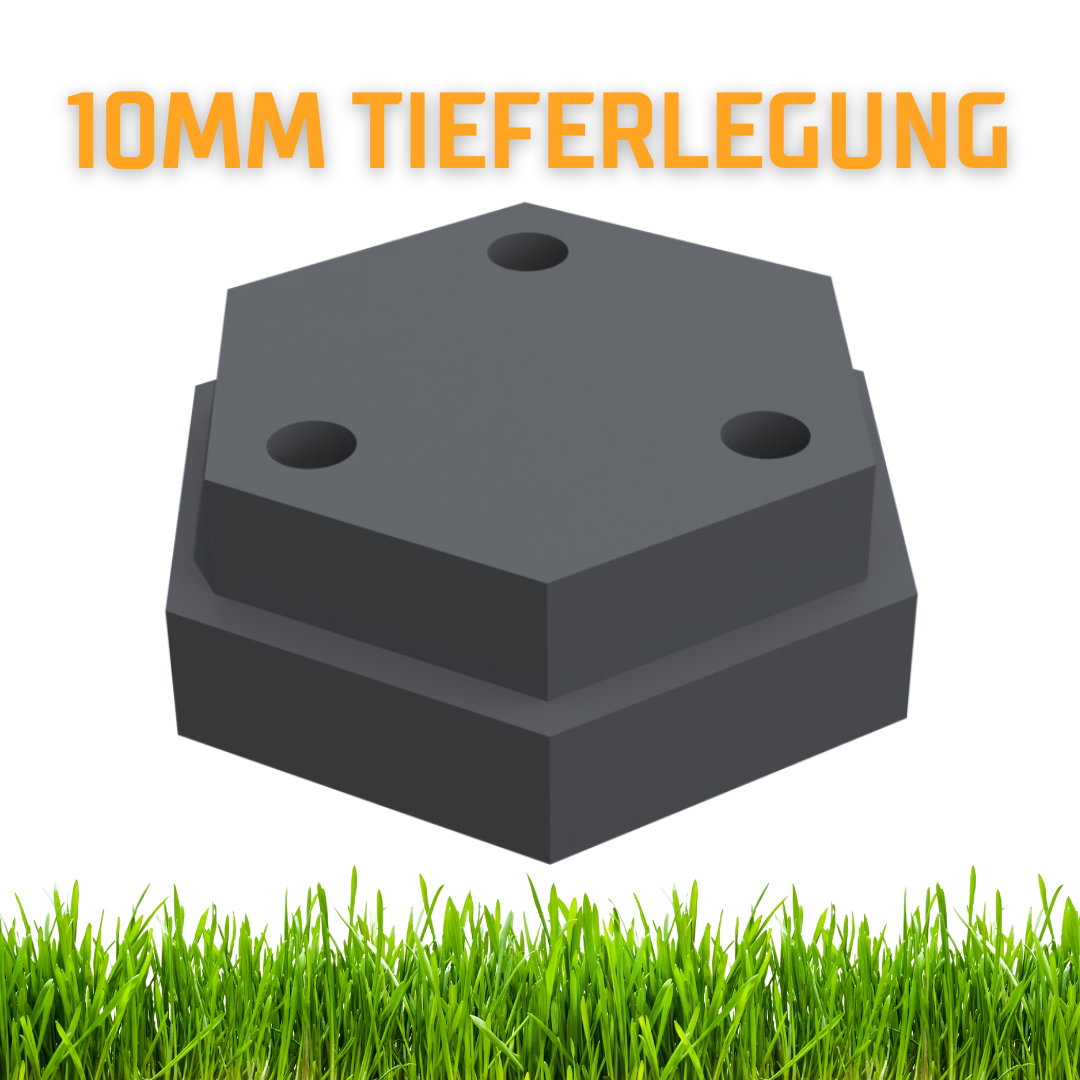

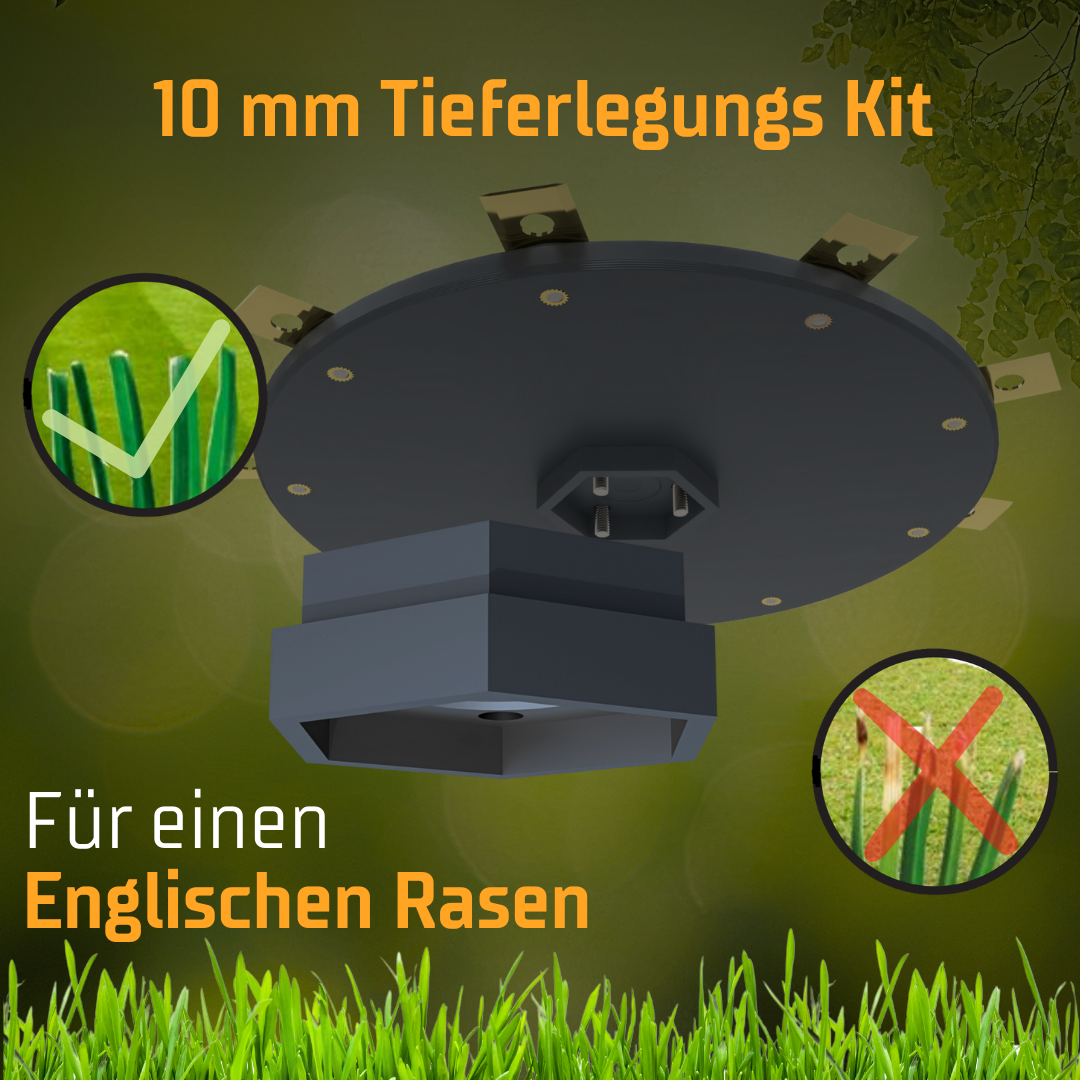

Tieferlegungsadapter 10 mm – für reduzierte Schnitthöhe bei Ecovacs Goat Modellen

Mit diesem Adapter senkst du die Schnitthöhe deines Ecovacs Goat Mähroboters um ca. 10 mm, ideal für ein besonders sauberes und präzises Schnittbild. Der Adapter ist speziell auf unsere Tuning Messerteller abgestimmt und sorgt für eine sichere, stabile Verbindung.

• ✅ 10 mm Schnitthöhen-Reduzierung für präzises, tiefes Schnittbild

• ✅ Nur für unsere Tuning Messerscheiben geeignet

• ✅ Robuste, passgenaue Bauweise für Goat G1, O-, A- und GX-Serie

• ✅ Perfekt in Kombination mit M4 x 20 Schrauben

• ✅ Einfache Montage bei voller Kontrolle

✅ Kompatibilität:
Passend für folgende Modelle:

• GOAT G1, G1-800, G1-2000

• GOAT O500, O800 RTK, O1200 RTK

• GOAT A1600 RTK, A2000 RTK, A2500 RTK, A3000 RTK

• GX-600

✅ Montagehinweise:

• Verwenden Sie ausschließlich unsere Tuning-Messerteller sowie passende Schrauben mit exakt korrekter Länge (empfohlen: M4 x 20 mm)

• Schrauben mit falscher Länge können zu Instabilität und Sicherheitsrisiken führen

• Achten Sie auf feste Verschraubung und Montage gemäß Anleitung

Wichtige Hinweise:

• Nur kompatibel mit unseren Tuning-Messertellern, nicht mit Original- oder Fremdprodukten

• Der Einsatz erfolgt auf eigenes Risiko. Herstellerhinweise und Sicherheitsvorgaben des Mähroboters bleiben gültig

• Durch Umbauten wie Tieferlegung kann die Garantie des Herstellers beeinflusst werden

This blade & screw set is suitable for our 9x blade discs.

• They can be used up to 4 times in a completely new condition thanks to their 2 holes.
• The knife set is made of carbon steel and is coated with titanium, which ensures a high level of robustness

1x set of screws for mounting our tuning discs 1x set contains three cylinder head screws with hexagon socket:

• M4x12mm, dimensions as for the original screws
• Hexagon socket
• High-strength alloy steel, strength class 12.9
• Rolled washer and spring washer

Installation instructions: The installation is carried out in accordance with the robotic lawnmower manufacturer's instructions. Please observe the

Safety instructions: Always follow the safety instructions of the robotic lawnmower manufacturer.
Risk warning: Use these screws at your own risk due to individual intervention.

Warranty: Please note that replacing the blade disc with an accessory such as our tuning blade discs may limit or affect the robotic lawnmower's warranty.

Safety information:
