Mammotion Yuka

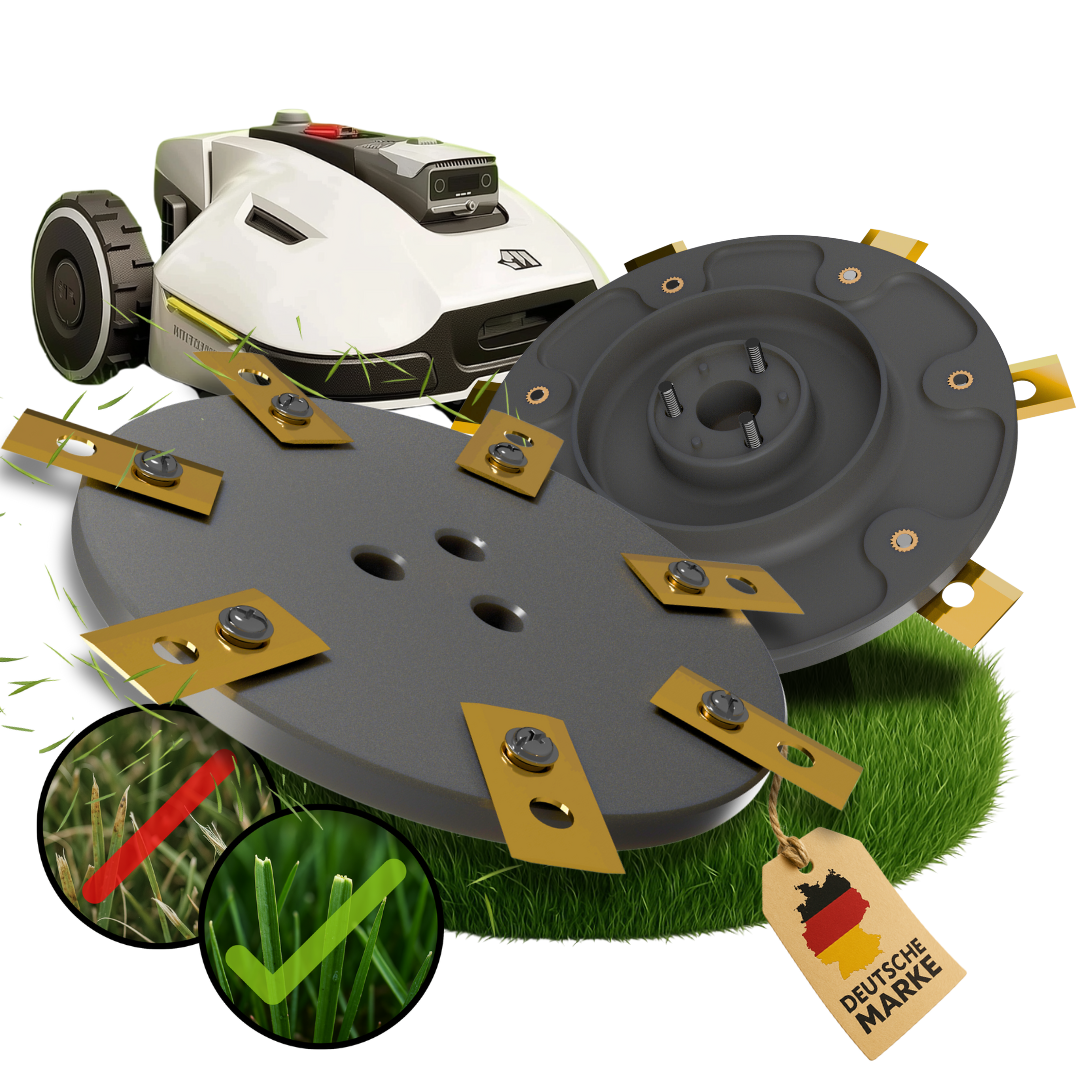

Perfection for Mammotion Yuka 1000 & 2000
Perfect lawns made easy with the Yuka Tuning blade disc! There is literally no substitute for this high-quality replacement!

Your advantages at a glance

✅ Suitable for: Mammotion Yuka 1000 & 2000
✅ Dimensions: 133 mm Ø | 160 mm cutting width
✅ Ultra-light & stable: Only 82 g – protects the motor & battery
✅ Original cutting heights: 100% identical
✅ Perfect fit: Compatible with Ø 7 mm mounting-hole blades & M4 screws
✅ 7-blade system: More cutting surface for faster, more even cutting
✅ 4-way usable blades: Economical 2-hole design
✅ Free blade movement: Blades mounted on stainless steel spacer T-sleeves for free rotation
✅ Integrated brass threaded sleeves: 7 × M4 – secure, durable fastening
✅ Smooth-coated surface: Hardly any grass or dirt adhesion
✅ 1:1 assembly: Just like the original – quick and easy
✅ Force flow-optimized design: FEM-analyzed for maximum load capacity
✅ Premium plastic: UV-resistant, water- and chemical-resistant, cold/heat-resistant, impact-resistant, and tensile-resistant

Color: Anthracite

📦 Scope of delivery
2 × improved 7-blade EasyCut tuning blade disc for Mammotion Yuka 1000 & 2000 (without blades)
Includes 2 × stainless steel T-spacer sleeves

Please note:
Slight variations in color, shade, or texture between the product and photos are possible, but do not affect function or quality.
Important note: Assembly and operation are at your own risk. All manufacturer's specifications, in particular safety instructions and warranty conditions, remain valid without restriction.

This blade & screw set is suitable for our 9x blade discs.

• They can be used up to 4 times in a completely new condition thanks to their 2 holes.
• The knife set is made of carbon steel and is coated with titanium, which ensures a high level of robustness

This knife & screw set is suitable for all knife plates offered.

Technical data:

• Material: Titanium carbide-coated stainless steel
• Dimensions: 36.2 x 18 x 0.85 mm
• Hole diameter: 7 mm (double hole)
• Mounting screws: 7 M4 screws

The blade set contains 45 blades and 45 M4 mounting screws, ensuring excellent durability and a precise, clean cut.

We recommend securing the blades with the screws and safety paint provided.

Warnings:

Caution: Sharp blades. Risk of injury. Use only with compatible robotic lawn mowers. Keep away from children.

1x set of screws for mounting our tuning discs 1x set contains three cylinder head screws with hexagon socket:

• M4x12mm, dimensions as for the original screws
• Hexagon socket
• High-strength alloy steel, strength class 12.9
• Rolled washer and spring washer

Installation instructions: The installation is carried out in accordance with the robotic lawnmower manufacturer's instructions. Please observe the

Safety instructions: Always follow the safety instructions of the robotic lawnmower manufacturer.
Risk warning: Use these screws at your own risk due to individual intervention.

Warranty: Please note that replacing the blade disc with an accessory such as our tuning blade discs may limit or affect the robotic lawnmower's warranty.

Safety information:

Get the Most Out of Your Mammotion Navigation System

Whether you use the Luba AWD or the Yuka with a sweeper kit: positioning the RTK reference station is the key to seamless navigation. With our wall mount, you can securely install the station exactly where the reception is best.

Product Details:

• Optimized Signal Strength: By mounting above ground level (e.g., on garden sheds or house walls), signal shielding caused by obstacles is drastically reduced.

• Universal Fit: The bracket was specifically developed for the Mammotion RTK base and is 100% compatible with Luba 1, Luba 2, and Yuka models.

• Weatherproof & Robust: Made of high-quality, UV-resistant specialized polymer for long-term outdoor use.

• Easy Installation: The station is securely locked into place, and the mount is easily attached to the wall using standard screws.

Scope of Delivery:

• 1 × EasyMount RTK Wall Mount (Compatible with Mammotion Luba & Yuka).

• Note: Mounting hardware such as screws or wall plugs are not included.
