Ecovacs Goat G1, GX, O Blade disk

42,99€

Maximum cutting performance - Up to 9 blades for precise, even cutting.

Simple installation - plug & play, perfect fit.

Secure fastening - Optimized T-sleeves ensure a firm hold.

Low wear - more blades, less maintenance.

Robust & Durable - UV-resistant ASA design for long-lasting performance.

Estimated delivery between April 05 and April 07.

color
Reinforced blade disc with stainless steel knife mount

Pay with

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your transaction is protected by advanced security measures to ensure the confidentiality of your information

Blade disc for ECOVACS GOAT G1 series robotic lawnmowers.
Models: GOAT G1, GOAT G1-800, GOAT G1-2000 and GX

Ecovacs Goat/Gx blade disc comparison

Specification and special features

  • Diameter of the blade disc: 187 mm
  • Cutting width: 220 mm
  • Sturdy and lightweight construction which, despite the additional blades, weighs less than the original with 3 blades and enables a longer battery life.

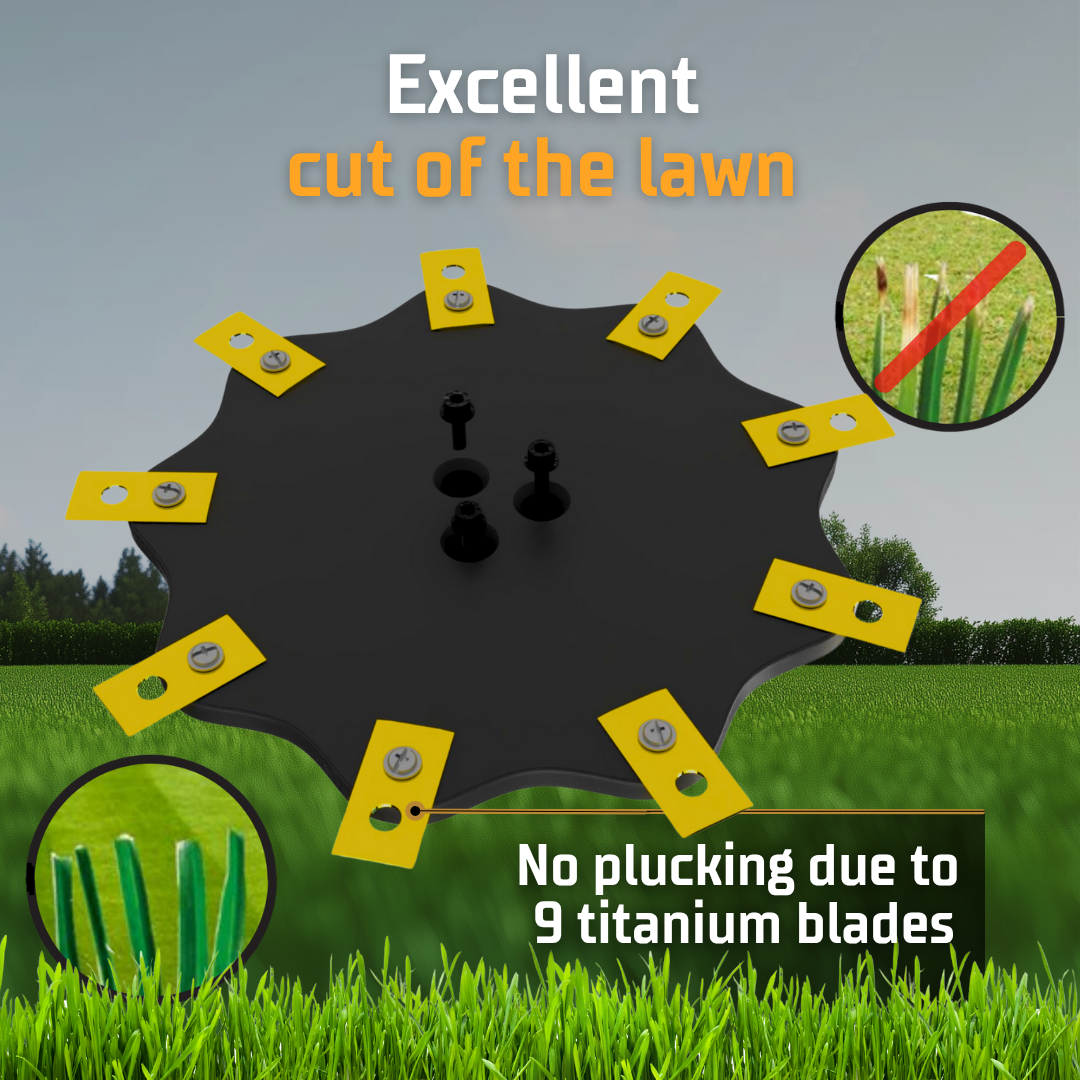

  • Holder for 9 blades, thus longer blade life, better cutting results and more power in dense lawns.
  • Symmetrical blades with 2 holes can be used up to 4 times.

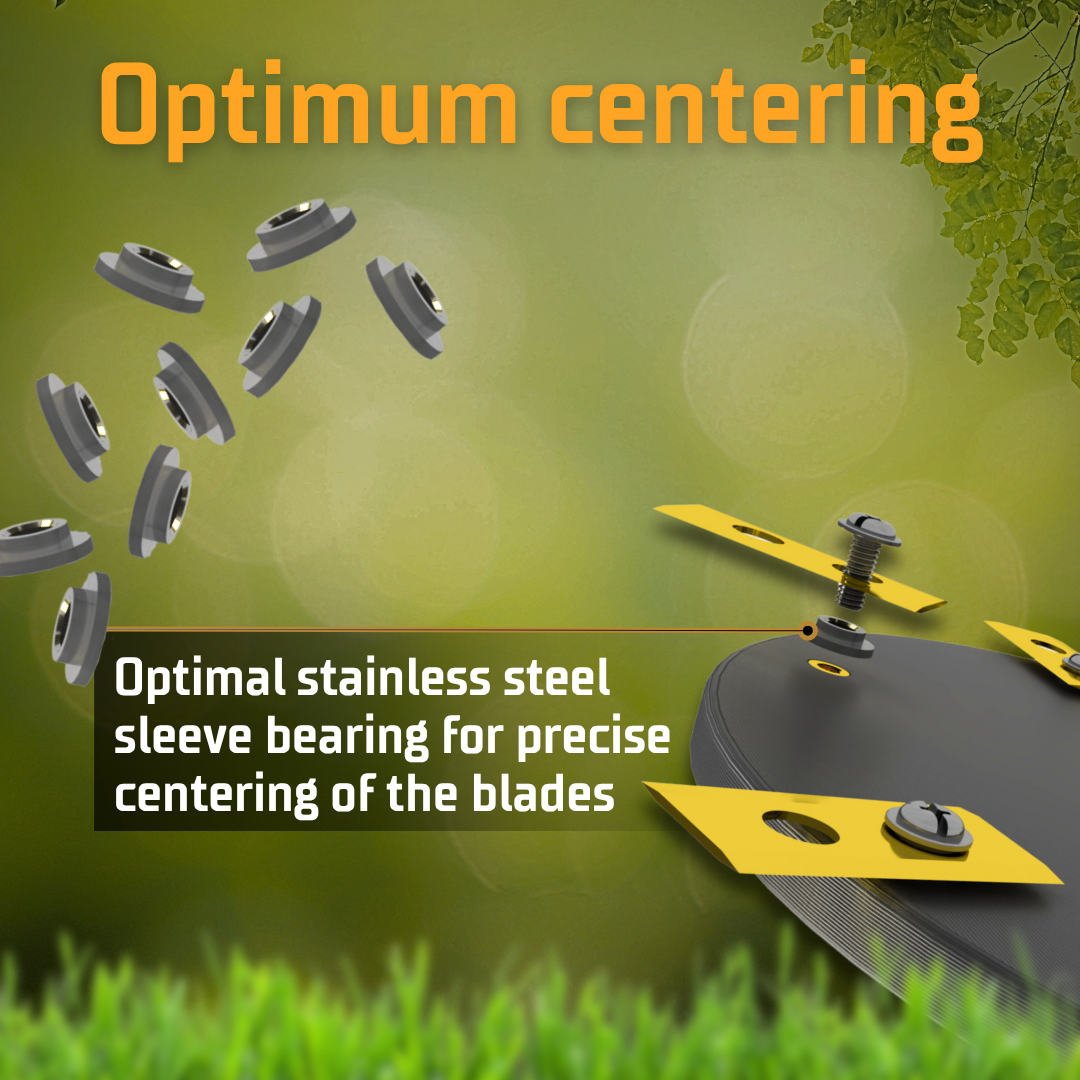

  • The blades are mounted on freely rotating bearings.
  • They are attached to integrated brass threaded sleeves from Ruthex.
  • No adapter required for mounting.
  • Smooth surface, less susceptible to build-up of grass clippings, prevents imbalance.
  • Made of high-quality technical plastic, with particularly good values for outdoor use in terms of UV resistance, water absorption, chemical resistance, cold and heat resistance, impact resistance and tensile strength.
  • Compatible with original blades and M4 screws.

Further tuning blade disks in various other offers or on request.

Colors: anthracite and orange

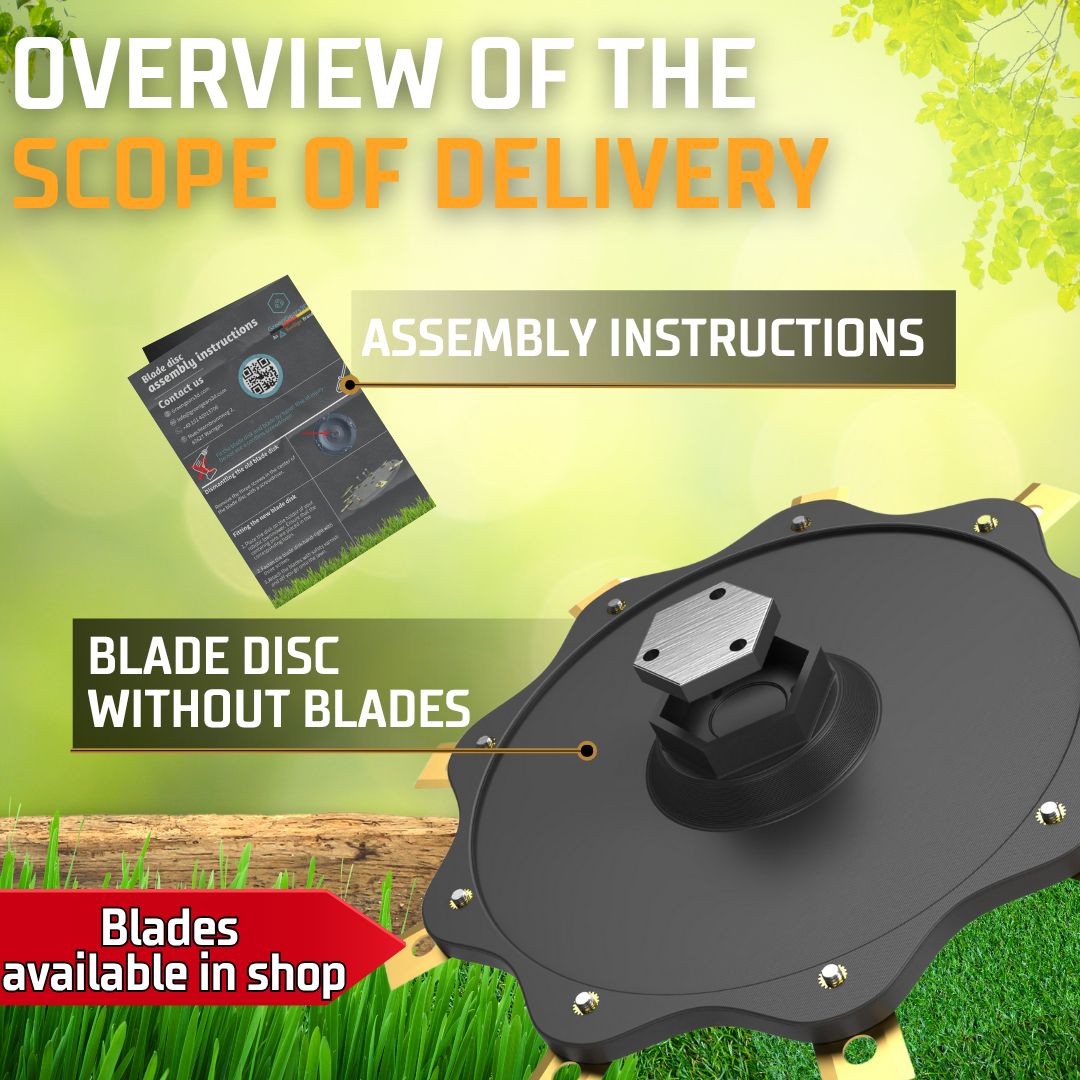

Scope of delivery:

  • Tuning blade disc for 9 blades for ECOVACS GOAT G1 robotic lawnmower

    Please note that there may be slight differences between the product and the photos shown, especially in terms of color, shading and texture. However, these differences do not affect the function or quality of the product.

    Important note: The tuning blade disk is fitted at your own risk in accordance with the manufacturer's instructions. All manufacturer information remains valid, in particular the safety instructions and the limited warranty

    GPSR Information

    Name: Markus Blohberger - EvoSign

    Address: Nüchternbrunnweg 2

    Email: info@greengears3d.com

    Website: www.greengears3d.com

    European Manufacturer: Yes

    Name: Markus Blohberger

    Address: Nüchternbrunnweg 2

    Email: markus.blohberger@greengears3d.com

    Website: www.greengears3d.com

    Warnings

    Safety Information

    1. Safety instructions for mowing plates made of ASA material

    Material properties and restrictions:

    The mowing plate is made of high-quality, UV-resistant ASA material that is durable and weatherproof. Suitable for normal mechanical loads; extreme loads and temperatures above 80 °C can affect stability. Not suitable for applications other than robotic mowers.

    General safety instructions:

    Regularly check the cutting disc for cracks, wear or deformation. Use only compatible blades and mounting materials that are suitable for this cutting disc. The cutting disc may only be operated with the intended blades from our range or blades with the same dimensions to avoid damaging the robotic lawnmower.

    Installation and removal:

    Turn off the robotic mower and disconnect it from the power supply completely before installing or removing the mower deck. Use a suitable screwdriver for installation and tighten the screws only hand-tight. The use of a cordless screwdriver is not permitted.

    Maintenance and inspection:

    Regularly check for damage and replace the mowing disc if there is visible material fatigue. Clean the mowing disc with fresh water if necessary, avoiding aggressive chemicals.

    Operating conditions:

    The mowing disc is optimized for use on flat lawns. Avoid unevenness and obstacles such as stones, manhole covers, roots, etc., as these can cause damage.

    2. Safety instructions for blades

    Material properties:

    The blades are made of high-quality stainless steel with a titanium carbide coating for maximum sharpness and durability.

    General safety instructions:

    Warning: the blades are extremely sharp. To avoid injury, wear suitable protective gloves when installing. Keep the blades out of the reach of children.

    Installation and removal:

    Make sure that the mower is switched off and that no energy source is connected. Use only the blades intended for the mower disc to ensure stability and safety.

    Disposal:

    To avoid injury, wrap the blades in paper or cloth before disposal and dispose of them in an environmentally friendly manner.

    3. Safety instructions for adapters made of ASA material

    Material properties and restrictions:

    The adapters are made of UV-resistant ASA material and are specially designed to lower the cutting height. Adapters must not be combined with each other, as this can cause imbalance and instability.

    General safety instructions:

    Check the adapter regularly for cracks, wear or deformation. Use adapters only with compatible mower decks and robotic mowers. Adapters should only be used on level lawns, otherwise the additional lowering can cause damage to the lawn if it is cut too short. Keep the adapters out of reach of children under 3 years of age to avoid choking.

    Installation and removal:

    Use a screwdriver and tighten screws only hand-tight. The use of a cordless screwdriver is not allowed.

    Maintenance and disposal:

    Clean the adapter as needed with fresh water and avoid aggressive cleaning agents. Dispose of damaged adapters in an environmentally friendly and safe manner.

    4. Safety instructions for mounting screws

    Material properties:

    The screws are made of galvanized, hardened steel or stainless steel and are specially designed for safe use in robotic lawn mowers.

    General safety instructions:

    Screws are small parts and can pose a choking hazard or risk of injury to children if not handled properly. Use only the screws supplied by us or screws with the same specifications.

    Mounting and dismounting:

    Screws may only be mounted or dismounted by hand using a suitable screwdriver. Cordless screwdrivers or electric tools are not permitted. Tighten the screws firmly, but avoid over-tightening to prevent damage to the thread or mounting.

    Maintenance and inspection:

    Regularly check the screws for secure fit and visible damage. Replace damaged screws immediately to ensure the stability of the mowing disc.

    Disposal:

    Dispose of damaged screws in an environmentally friendly way and pack them securely to avoid injury.

    Summary of safety measures

    Regularly check the condition of all components (cutting disc, blades, adapters and screws). Follow the assembly and maintenance instructions to ensure safe use. Keep all parts out of the reach of children and use them only for their intended purposes.

    Keep out of reach of children.

    Ecovacs Messerteller

    42,99€

    42,99€

    SAFE & STABLE

    Disturbance-free operation - even on wet lawns thanks to precise T-sleeves.

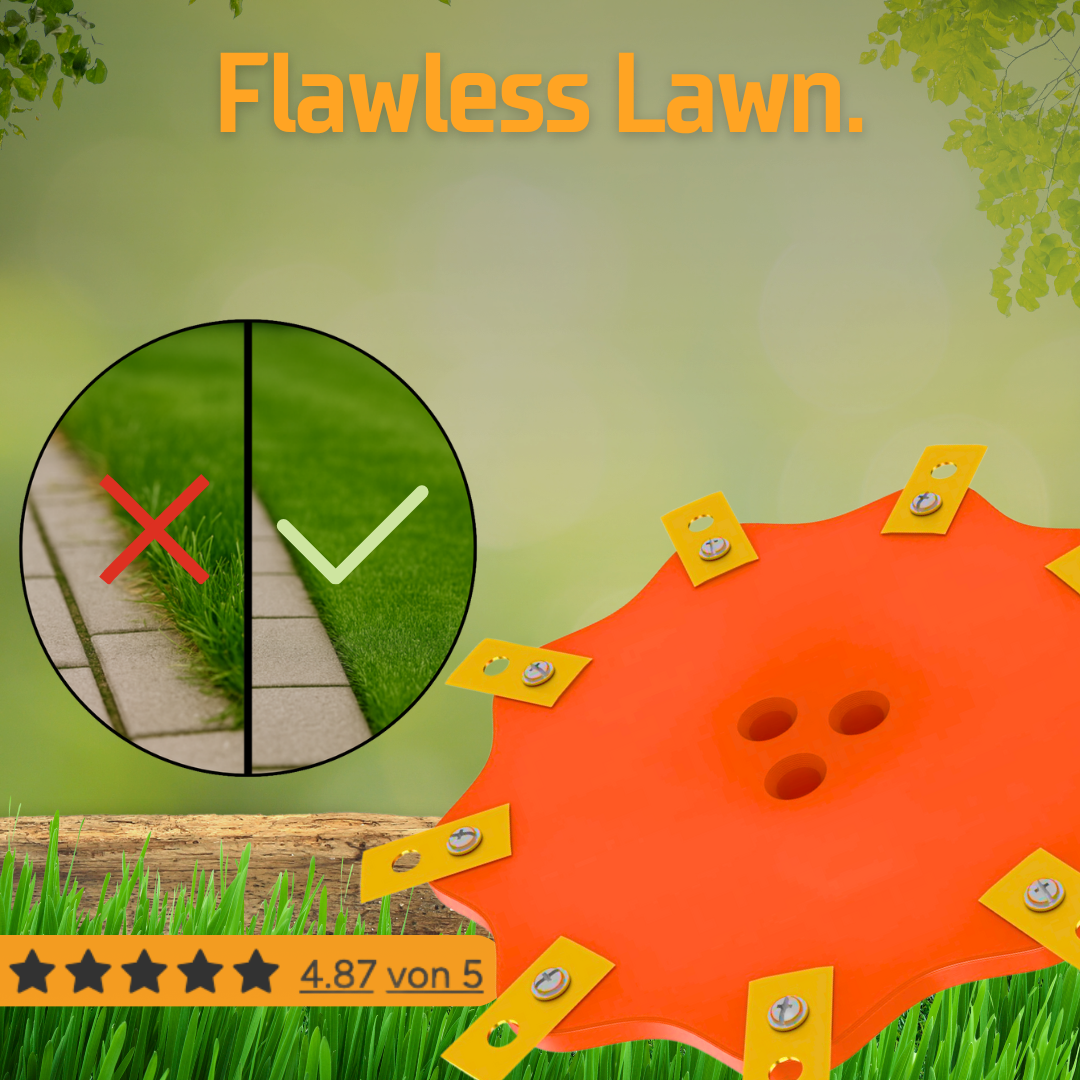

    PRECISE CUT

    To 9 blades for an even, perfect lawn cut.

    LESS MAINTENANCE

    Distributed load: less maintenance and fewer blade changes.

    ROBUST & DURABLE

    Weight-optimized design made of ASA - for long-lasting performance.

    EFFICIENCY & SAVINGS

    Optimized performance reduces costs and saves time.

    Construction


    When developing the blade discs, the aim was to achieve a weight-optimized design with greater stability and also to reduce noise emissions and soiling. The smooth surface without edges means that less grass clippings can accumulate, which can lead to imbalance.

    Material properties

    The knife plates are made from technical thermoplastic using the additive FDM printing process. When selecting the material, attention was paid to high mechanical strength as well as UV and weather resistance.

    Increased cutting performance

    The higher number of blades means that even very dense lawns can be cut precisely and easily. The likelihood of plucking and the associated yellow blades of grass is reduced and the cut is more even.

    Knife service life

    The knife service life is increased by the longer blade length available for cutting due to the larger number of knives. The knives are mounted with an optimized mounting distance so that they can usually be rotated and reused.

    Installation

    As with the original, installation is uncomplicated and possible without an adapter.

    Sustainability

    The energy required for production is mainly provided by self-generated electricity and the filament is produced in Austria.

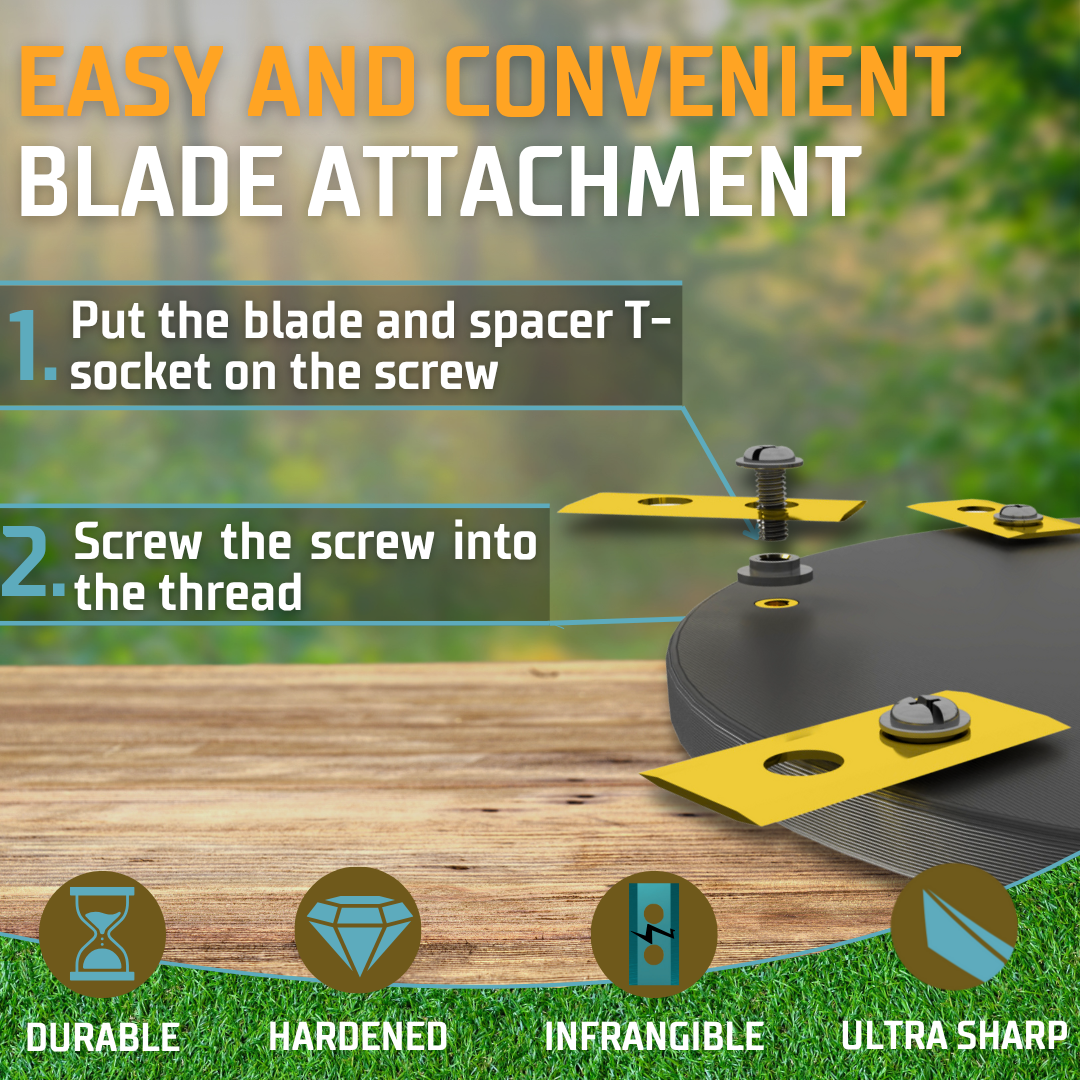

    Fixing of the blades

    Brass threaded inserts are used to securely fix the knives using M4 screws. The threaded sleeve protrudes approx. 2 mm so that the hood is mounted hand-tight against the sleeve and the blade remains free to rotate.

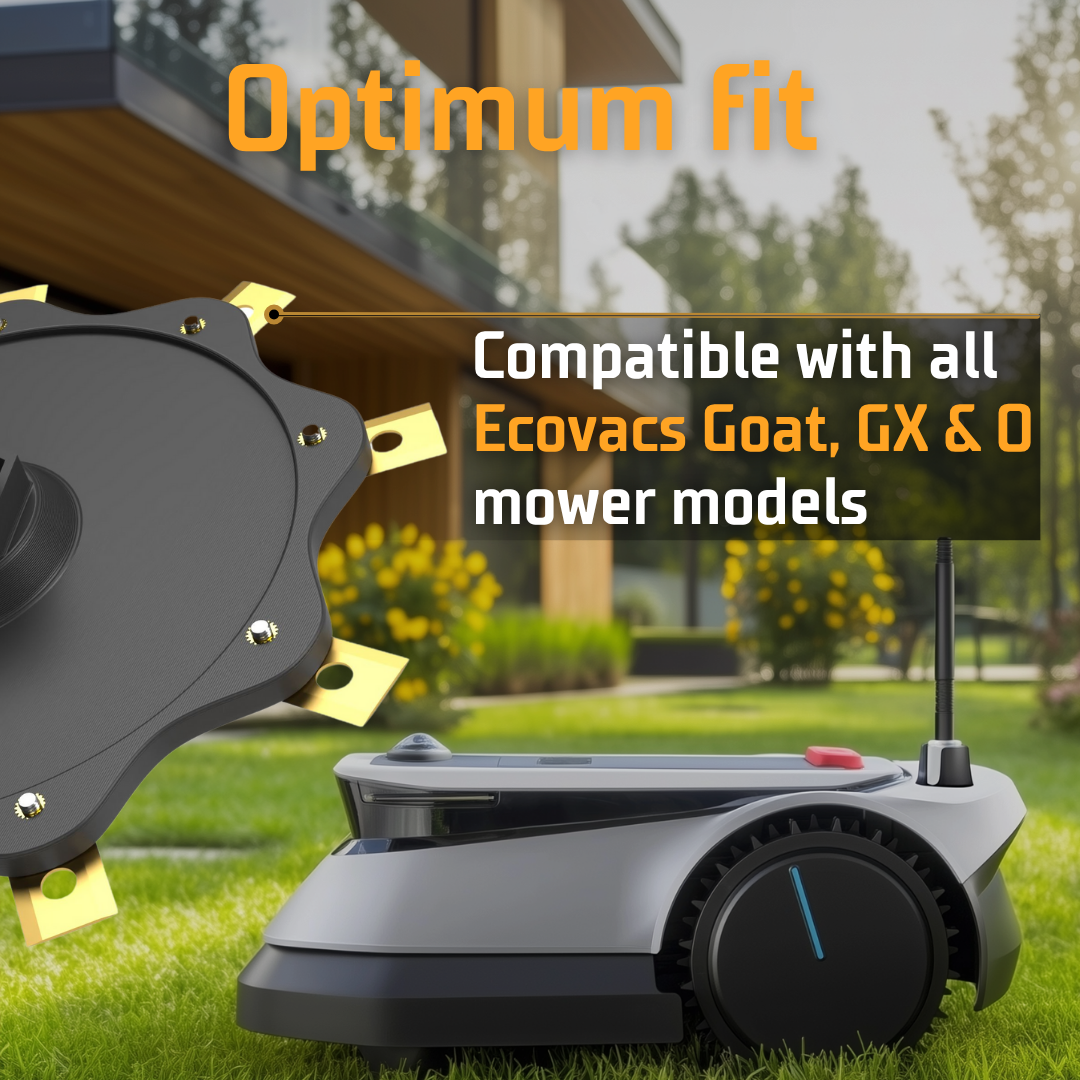

    Compatibility

    The conventional M4 screws and the original blades can still be used. The cutting heights are exactly the same as those of the original blade plate.

    Let our customers convince you.

    Based on 43 reviews
    86%
    (37)
    9%
    (4)
    5%
    (2)
    0%
    (0)
    0%
    (0)
    Kauf Messerscheibe

    Firma Top, Kommunikation super. Jederzeit wieder

    Commande navimow

    Excellente réactivité commande livrée bien emballé.

    Goat G1 knife disc and blades

    Well it's on the my robots, and fits perfectly 😁 the extra blades will help him a lot good quality cutting plate and quality inserts fitted and nice screws with blade pack .
    I can recommend and am very happy with the supplied upgrade.

    Teller im Dauereinsatz super Mähqualität!

    Ich bin begeistert! Seitdem ich diesen Mähteller im Einsatzhabe, schneidet mein Worx viel besser.

    Fits and works perfectly

    Fits and works perfectly. Thanks

    Schrauben

    Die Schrauben waren nicht im Angebot

    Passt 1:1. Nach meinem Empfinden ist die Scheibe etwas lauter, aber man hört das etwas passiert. Werde weiter testen.

    Top Produkt, kam sogar eher als angegeben

    Gute Qualität

    Vielen Dank für
    die guten Schrauben!

    T
    Navimow i-Serie Messerteller Powercut
    Thomas Schick

    NavImow wird lauter und verbrat mehr Strom, aber ansonsten alles gut.

    Funktioniert hervorragend. Danke

    Top

    Tolles Produkt empfehlenswert
    Netter Kontakt
    Immer wieder gerne. Dank.

    Super

    Super Teil läuft sehr gut

    Alles bestens

    Top

    Tip Top

    .

    Sinnvoll und gute Qualität.

    Top Produkt kann ich empfehlen.

    Optisch guter Eindruck

    Langzeittest noch nicht durchgeführt

    Scheibe aus dem 3d-Drucker. Ersteindruck ganz ok. Trotz Führungsringe aus Edelstahl setzen sich die Messer mit Schnittgut fest und schwingen nicht mehr frei.

    Top

    Für einen Ecovacs G1 800 gekauft. Habe erst wegen der 9 Messer, mit erhöhter Geräuschkulisse gerechnet, aber der Mäher läuft leiser als mit dem Originalteller. Einfache Montage, super Mähergebniss.

    Alles super

    TolleQualität und schnelle Lieferung . Die Messer sind deutlich besser als die Originale.
    Bin mehr als zufrieden.

    FAQs

    The decision to use an odd number of blades is based on engineering principles derived from aircraft and mechanical engineering in order to minimize resonance frequencies. Symmetrically opposed blades can induce resonance phenomena, while odd numbers help to distribute the resulting forces and vibrations more homogeneously. Furthermore, the probability of imbalance, which can be caused by adhesion of grass clippings, is reduced with an odd number of blades.

    Diese Annahme ist eine Übergeneralisierung. Die Robustheit des 3D-Drucks
    beginnt mit der sorgfältigen Auswahl des Materials. Ein Messerteller, gefertigt
    aus hochschlagfesten Polymeren wie ASA, kann auch unter hohen Belastungen, wie
    dem Kontakt mit festen Objekten, eine adäquate Schlagzähigkeit aufweisen. Die
    Rotationsgeschwindigkeit von annähernd 3000 Umdrehungen pro Minute führt bei
    plötzlich auftretenden Hindernissen zu signifikanten Kräften, die proportional
    zur Masse der rotierenden Komponenten sind, so dass es
    entscheidend auf die Auswahl des Materials ankommt um diese Kräfte zu
    absorbieren.

    Insbesondere die Schlagzähigkeit ist eine wichtige Eigenschaft für Materialien, die im Außenbereich bei Mähtellern zum Einsatz
    kommen.  ASA ist bekannt für seine gute Schlagzähigkeit, auch bei niedrigen Temperaturen. Im Vergleich zu anderen
    Kunststoffen wie PLA, PETG und ABS bietet ASA folgende Vorteile in Bezug auf
    Schlagbeanspruchung:

    Diese Eigenschaften
    machen ASA zu einem bevorzugten Material für Anwendungen, die eine hohe
    Schlagfestigkeit erfordern, wie zum Beispiel in der Automobilindustrie, im
    Bauwesen oder bei Sportgeräten, die häufigen Stößen und Schlägen ausgesetzt
    sind. ASA’s Fähigkeit, seine Integrität und Leistung unter diesen Bedingungen
    beizubehalten, macht es zu einer ausgezeichneten Wahl für den Außeneinsatz.

    Innovative
    Konstruktionsmöglichkeiten durch 3D-Druck:

    Der 3D-Druck
    revolutioniert die Fertigungstechnik durch seine Fähigkeit, komplexe Strukturen
    zu schaffen, die mit traditionellen Methoden wie dem Spritzguss nicht möglich
    wären. Ein signifikanter Vorteil dieser Technologie ist die Möglichkeit, durch
    gezielte Konstruktion und den Einsatz von Finite-Elemente-Methoden (FEM)
    hochstabile Strukturen bei gleichzeitiger Material- und Gewichtseinsparung zu
    realisieren.

    Materialökonomie
    und strukturelle Integrität:

    Ein anschauliches
    Beispiel für das Prinzip der Materialökonomie ist der Vergleich zwischen einem
    Doppel-T-Träger und einem Vollmaterialträger mit rechteckigem Querschnitt. Der
    Doppel-T-Träger, der in der Bauindustrie für seine hohe Biegesteifigkeit und
    Tragfähigkeit bekannt ist, nutzt das Material effizienter, indem er die Masse
    dort konzentriert, wo sie am meisten zur Tragfähigkeit beiträgt – weit entfernt
    von der neutralen Faser. Dieses Prinzip lässt sich auf den 3D-Druck übertragen,
    wo durch die Integration von Hohlräumen und spezifischen Wandstärken die mechanischen
    Eigenschaften optimiert werden können.

    FEM-Analyse
    zur Optimierung:

    Die FEM-Analyse
    unterstützt diesen Prozess, indem sie die Belastbarkeit und das Verhalten der
    Strukturen unter Lastbedingungen simuliert, um die Konstruktion entsprechend
    anzupassen. So entstehen Bauteile, die bei reduziertem Gewicht eine hohe
    Festigkeit und Stabilität bieten. Die Fähigkeit, Hohlräume gezielt einzusetzen,
    ermöglicht es, leichte, aber hochstabile Strukturen zu schaffen, die für
    anspruchsvolle Anwendungen geeignet sind.

    Zusammenfassung
    der Vorteile:

    Zusammengefasst
    bietet der 3D-Druck gegenüber dem Spritzguss den Vorteil, dass er durch die
    Integration von Hohlräumen und die Anwendung von FEM-Analysen eine hohe
    strukturelle Stabilität bei optimierter Materialverwendung ermöglicht. Dies
    führt zu leichten, aber extrem belastbaren Komponenten, die für anspruchsvolle
    Anwendungen konzipiert sind. Der 3D-Druck nutzt das Prinzip der
    Materialökonomie, ähnlich wie bei einem Doppel-T-Träger, um mit weniger
    Material eine höhere Belastbarkeit zu erreichen.

    Starre Klingen bergen Risiken, insbesondere bei geringen Materialstärken
    (unter 0,5 mm). Sie können bei Kontakt mit festen Objekten brechen und als
    gefährliche Projektile fungieren. Die direkte Kraftübertragung auf Antrieb und
    Lager bei einem Aufprall kann zu Schäden und erhöhtem Verschleiß führen, was
    die Lebensdauer des Mähroboters verkürzt. Drehbar gelagerte Klingen hingegen
    reduzieren die Stoßkräfte und sind für die meisten Rasenflächen besser
    geeignet.

    Multiple blades improve the cutting pattern and mulching effect as they cut the lawn more finely. The load is distributed over more blades, which extends their service life. Physically, the arrangement of the blades at the edge of the mower disc increases the moment of inertia, resulting in a more stable rotational movement and less interference. For dense lawns or deep cuts, a higher number of blades may be necessary to ensure a uniform cutting pattern.
