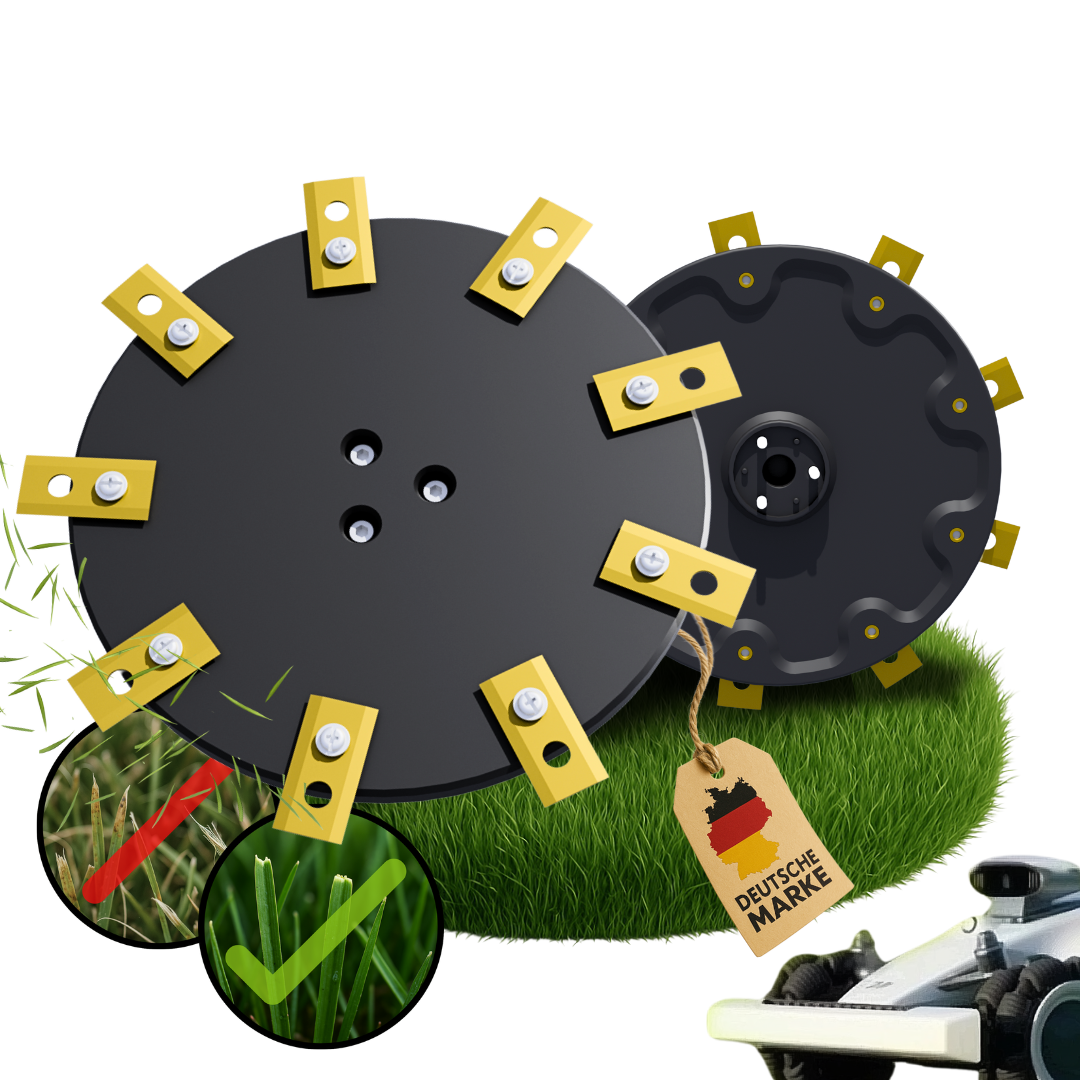

2 x blade disc adapter / blade disc adapter for Mammotion Luba robotic lawnmower.
Models: Luba 1 AWD, Luba 2 AWD

Compatibility:
This adapter is specifically designed for use with our Luba anvils and ensures precise cutting height reduction of 5 millimeters.

Installation note:

• Use only our blade plates and the screws provided or screws of exactly the correct length (M4 x 16 mm).
• An incorrect screw length can affect the stability of the adapter and endanger safety.

Important notes:

• Not compatible with other blade plates or adapters.
• Make sure that the installation is carried out according to the instructions and that all screws are tightened firmly.

Manufacturer information:
Greengears3D
Nüchternbrunnweg 2
83627 Warngau, Germany
E-mail: info@greengears3d.com

Models: Navimow H-models: H500E, H800E, H1500E, H3000E

Specifications and features

• Diameter: 182 mm
• Cutting width: 213 mm
• Weight: 100 grams without blades
• Cutting height identical to the original

• Compatible with original blades and M4 screws
• No adapter required for assembly
• Stable and lightweight construction
• Holding fixture for 9 blades
• Longer blade life, better cut

• 4-way reusable blades (2 holes)
• The blades are freely rotating
• Stainless steel T-sleeves for blade guidance
• Attachment to integrated threaded sleeves

• Smooth surface, hardly any deposits
• Easy assembly, like the original
• Force-optimized design (FEM)

• made of high-quality technical plastic, with just the right values for outdoor use in terms of UV resistance, water absorption, chemical resistance, cold and heat resistance, impact strength and tensile strength.

• The blade discs are equipped with 9 integrated brass melting threaded sleeves (M4) that ensure the blades are securely attached and are designed for long-lasting use.

Other tuning blade discs available in a range of other designs or on request.

Colors: anthracite and orange

Contents:

• Tuning blade disc with 9 blades for Navimow H-series robotic lawn mower without blades


Please note that there may be slight differences between the product and the photos shown, particularly with regard to color, shade and texture. However, these differences do not affect the function or quality of the product.

Important note: The blade disc is installed at your own risk in accordance with the manufacturer's instructions. All manufacturer information is still valid, in particular the safety instructions and limited warranty.

Blade disc for Navimov i-series robotic lawnmowers.
Models: Suitable for Navimov i models: i105E / i108E

Specification and special features

• Diameter: 210mm
• Cutting width: 245 mm
• Weight: 143 grams without blades
• Cutting heights identical to the original

• Compatible: original blade and M4 screws
• No adapter required for installation
• stable and lightweight construction
• Holder for 9 blades
• Longer blade life , better cut
• 4-way usable blades (2 holes)
• The blades are mounted so they rotate freely.
• Fastening to integrated threaded sleeves

• smooth surface , hardly any deposits
• easy installation, like original
• force-optimized design (FEM)
• Made of high-quality technical plastic, with particularly good values ​​in terms of UV resistance , water absorption, chemical resistance , cold and heat resistance, impact resistance and tensile strength, especially for outdoor use .

Further tuning knife discs in various other offers or on request.

Colors : anthracite and orange

Scope of delivery :

• Tuning blade plate for 9 blades for NAVIMOW i-series robotic lawnmowers


Please note that there may be slight differences between the product and the photos shown, especially in terms of color, shade and texture. However, these differences do not affect the function or quality of the product.

Important note: The blade disc is installed according to the manufacturer's instructions at your own risk. All manufacturer information remains valid, especially the safety instructions and the limited warranty

Blade disc for Navimov i-series robotic lawnmowers.
Models: Suitable for Navimov i models: i105E / i108E

Specification and special features

• Diameter: 230mm
• Cutting width: 265 mm
• Weight: 165 grams without blades
• Cutting heights identical to the original

• Compatible: original blade and M4 screws
• No adapter required for installation
• stable and lightweight construction
• Holder for 9 blades
• Longer blade life , better cut
• 4-way usable blades (2 holes)
• The blades are mounted so they rotate freely.
• Fastening to integrated threaded sleeves

• smooth surface , hardly any deposits
• easy installation, like original
• force-optimized design (FEM)
• Made of high-quality technical plastic, with particularly good values ​​in terms of UV resistance , water absorption, chemical resistance , cold and heat resistance, impact resistance and tensile strength, especially for outdoor use .

Further tuning knife discs in various other offers or on request.

Colors : anthracite and orange

Scope of delivery :

• Tuning blade plate for 9 blades for NAVIMOW i-series robotic lawnmowers


Please note that there may be slight differences between the product and the photos shown, especially in terms of color, shade and texture. However, these differences do not affect the function or quality of the product.

Important note: The blade disc is installed according to the manufacturer's instructions at your own risk. All manufacturer information remains valid, especially the safety instructions and the limited warranty

Blade disc for Navimov i-series robotic lawnmowers.
Models: Suitable for Navimov i models: i105E / i108E

Specification and special features

• Diameter: 182mm
• Cutting width: 213 mm
• Weight: 107 grams without blades
• Cutting heights identical to the original

• Compatible: original blade and M4 screws
• No adapter required for installation
• stable and lightweight construction
• Holder for 9 blades
• Longer blade life , better cut
• 4-way usable blades (2 holes)
• The blades are mounted so they rotate freely.
• Fastening to integrated threaded sleeves

• smooth surface , hardly any deposits
• easy installation, like original
• force-optimized design (FEM)
• Made of high-quality technical plastic, with particularly good values ​​in terms of UV resistance , water absorption, chemical resistance , cold and heat resistance, impact resistance and tensile strength, especially for outdoor use .

Further tuning knife discs in various other offers or on request.

Colors : anthracite and orange

Scope of delivery :

• Tuning blade plate for 9 blades for NAVIMOW i-series robotic lawnmowers


Please note that there may be slight differences between the product and the photos shown, especially in terms of color, shade and texture. However, these differences do not affect the function or quality of the product.

Important note: The blade disc is installed according to the manufacturer's instructions at your own risk. All manufacturer information remains valid, especially the safety instructions and the limited warranty

Blade disk adapter
Models: GOAT G1, GOAT G1-800, GOAT G1-2000 and GOAT O500, GOAT O800 RTK, GOAT O1200 RTK and GOAT A1600 RTK, GOAT A2000 RTK, GOAT A2500 RTK, GOAT A3000 RTK and GX-600

Compatibility:
This adapter is specially designed for use with our blade discs and ensures a precise reduction of the cutting height by 5 millimetres.

Installation instructions:

• Only use our blade discs and the screws offered or screws of exactly the right length (M4 x 16 mm length).
• An incorrect screw length can impair the stability of the adapter and jeopardize safety.

Important notes:

• Not compatible with other blade plates or adapters.
• Ensure that assembly is carried out in accordance with the instructions and that all screws are tightened securely.

Blade disc adapter / blade disc adapter for Worx robotic lawnmowers.

Models: All with hexagon socket

Compatibility:
This adapter is specially designed for use with our blade discs and ensures a precise reduction of the cutting height by 5 millimetres. It is also compatible with the original blade discs M and L which have a hexagonal mount.

Installation instructions:

• Only use our blade discs and the screws offered or screws of exactly the right length (M4 x 16 mm length).
• An incorrect screw length can impair the stability of the adapter and jeopardize safety.

Important notes:

• Ensure that assembly is carried out in accordance with the instructions and that all screws are tightened securely.

Performance blade disc EasyCut-L anthracite#

Blade disc for Worx Landroid L robotic lawnmower.

Models: Worx Landroid L800 plus [WR148], L1000 [WR147.1], L1000 [WR147E.1] from year of manufacture 2020

Technical features

• Diameter 170 mm
• Diameter with blades 202 mm
• Weight: 110 grams without blades
• Cutting heights identical to the original
• Compatible with blades up to 36.2 mm in length
• Blade fastening with M4 x 10 screws.
• Blades are freely rotating.

Compatibility

Suitable for the following brand manufacturers

• Worx Landroid L800 plus [WR148E], L1000 [WR147.1], L1000 [WR147E.1] from year of manufacture 2020
• Please note: only with hexagon mount.

Scope of delivery

One ready-to-use blade disc without blade and without screws.

Performance plate PowerCut-L anthracite/orange

Blade plate / blade disc for Worx Landroid L robotic lawnmower.
Models: Worx Landroid L800 plus [WR148], L1000 [WR147.1], L1000 [WR147E.1] from model year 2020

Technical features

• Diameter 170mm
• Diameter with blades 202 mm
• Weight: 75 grams without blades
• Cutting heights identical to the original
• Compatible with blades up to 36.2 mm long

• Blade attachment with M4 x 10 screws.
• Knives are mounted so they rotate freely.

Compatibility

Suitable for the following brand manufacturers

• Worx Landroid L800 plus [WR148E], L1000 [WR147.1], L1000 [WR147E.1] from model year 2020
• Please note: only with hexagon socket.

Scope of delivery

A ready-to-use knife plate without knives and without screws.

Performance blade disc EasyCut-M anthracite

Blade disc for Worx Landroid M robotic lawnmower.

Models: Worx Landroid S & M, Vision M600 from 2020, LandXcape models from 2020, Ferrex, Scheppach

Compatibility

Suitable for the following brand manufacturers

• Worx Landroid S and M, Vision M600 from 2020
• LandXcape models from 2020
• Ferrex
• Scheppach
• Please note: only with hexagon socket.

scope of delivery

A ready-to-use blade disk without knives and without screws.

Performance blade disc PowerCut-M

Blade disc for Worx Landroid M robotic lawnmower.

Models: Worx Landroid S & M, Vision M600 from 2020, LandXcape models from 2020, Ferrex, Scheppach

Technical features

• Diameter 150 mm
• Diameter with blades 182 mm
• Weight: 67 grams without blades
• Cutting heights identical to the original blade disc
• Original blades or blades up to 36.2 mm long
• Blade fastening with M4 x 10 screws.
• Blades are freely rotating.

Compatibility

Suitable for the following brand manufacturers

• Worx Landroid S and M, Vision M600 from 2020
• LandXcape models from 2020
• Ferrex
• Scheppach
• Please note: only with hexagon mount.

Scope of delivery

One ready-to-use blade disc without blade and without screws.

2 x blade disc adapter for Mammotion Yuka robotic lawn mower.
Models: Yuka 1500, Yuka 2000

Compatibility:

• Compatible with Mammotion Yuka (3-blade design, older version - also known as Yuka Classic). Not suitable for models with 6-blade blade plates.
• This adapter is specially designed for use with our blade discs and ensures a precise reduction of the cutting height by 5 millimetres.

Installation note:

• Use only our blade discs and the screws provided or screws of exactly the right length (M4 x 16 mm).
• An incorrect screw length can affect the stability of the adapter and endanger safety.

Important notes:

• Not compatible with other blade discs or adapters.

• Make sure that the assembly is carried out according to the instructions and that all screws are tightened securely.
